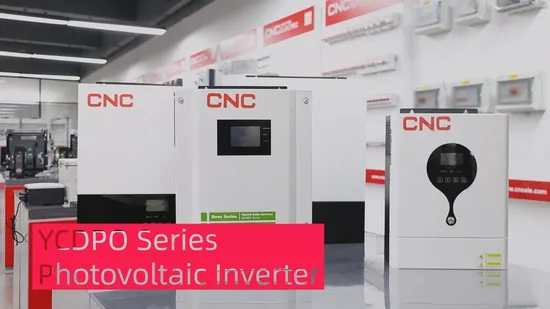

Ycdpo I Series New Design DC 24V 48V Solar Inverter 3000W/5000W Solar Power System Hybrid Inverter

Overview

Basic Info.

Model NO.	YCDPO I
Phase	Single
Output Power	>1000W
Certification	CE, ROHS, CCC
Brand	CNC
Type	DC/AC Inverters
Power Source	Solar Power
Circuit Topologies	Push-pull Type
Nature of Wave String	Sine Wave Inverter
Battery Voltage	48VDC
Wave Form	Pure Sine Wave
Efficiency	93.5%
Input Voltage	230VAC
Rated Power	5500W
Transport Package	56*42*22.5cm, 12kg, Standard Export Package
Specification	YCDPO I-5500-48
Trademark	CNC
Origin	China
HS Code	8504403090
Production Capacity	8000/Month

Packaging & Delivery

Package Size 56.00cm * 45.00cm * 23.00cm Package Gross Weight 12.000kg

Product Description

Product DescriptionYCDPO I Series New Design DC 24V 48V Solar Inverter 3000W/5000W Solar Power System Hybrid InverterYCDPO I-5500-48Hybrid Solar Power Inverter(High PV Voltage)5500W
Just contact to us for more information!Product snapshot
Model: 3.5kW/5.5kW/8kW Nominal Voltage: 230VAC Frequency Range: 50Hz/60Hz

Model	YCDPOI3500-24	YCDPOI5500-48	YCDPO18000-48
Rated Power	3500VA/3500W	5500VA/5500W	8000VA/8000W
Input
Voltage	230VAC
Selectable Voltage Range	170-280VAC(For Personal Computers); 90-280VAC(For Home Appliances)
Frequency Range	50Hz/60Hz(Auto sensing)
Output
AC Voltage Regulation (Batt.Mode)	230VAC±5%
Surge Power	7000VA	11000VA	16000VA
Efficiency(Peak)	up to 93.5%
Transfer Time	10 ms(For Personal Computers); 20 ms(For Home Appliances)
Waveform	Pure sine wave
Battery
Battery Voltage	24VDC	48VDC	48VDC
Flooating Charge Voltage	27VDC	54VDC	54VDC
Overcharge Protection	33VDC	63VDC	63VDC
Solar Charger & ACCharger
Maximum PV Array Open Circuit Voltage	500VDC	500VDC	500VDC
Maximum PV Array Power	5500W	5500W	4000W*2
MPPT Range @ Operating Voltage	120~450VDC	120~450VDC	120~450VDC
Maximum Solar Charge Current	100A	100A	120A
Maximum AC Charge Current	80A	80A	120A
Maximum Charge Current	100A	100A	120A
Physical
Dimension,D×W×H(mm)	550×420×225		420×561.6×152.4
Net Weight (kgs)	11.5	12.1	21
Communication Interface	USB/RS232
Environment
Humidity	5% to 95% Relative Humidity(Non-condensing)
Operating Temperature	-10ºC to 50ºC
Storage Temperature	-15ºC to 60ºC
